FLEXPORTER HOMEPAGE

Last update : June, 3, 2003

WHAT IS FLEXPORTER ?

Flexporter is a free utility plug-in for 3D Studio MAX, designed to easily export a lot of information out of it.

Features :

• Works with MAX3, MAX4, MAX5
• Meshes, cameras, lights, helpers, shapes
• Primitives (box, sphere, capsule, etc)
• Gizmo objects
• Materials and submaterials
• All textures (diffuse, opacity, bump, whatever)
• Texture downsampling and filtering if needed
• Texture quantization
• Cropping values
• Character Studio BIPED and PHYSIQUE
• Hierarchy
• Instances
• User defined properties
• Groups
• Environment
• Time related information
• Animation controllers (PRS, some camera & light parameters)
• Sampling or keyframing
• Visibility track
• Automatic convex hull computation
• Automatic bounding sphere computation
• Automatic inertia tensor computation
• Mesh consolidation
• Mesh optimization
• User-defined export formats
• Morphing
• IK data
• Full scene scaling
• ...and much more !

DOWNLOAD

Version 1.17b

Version 1.16

People at Game Institute may need those ones:

Version 1.06

Version 1.04

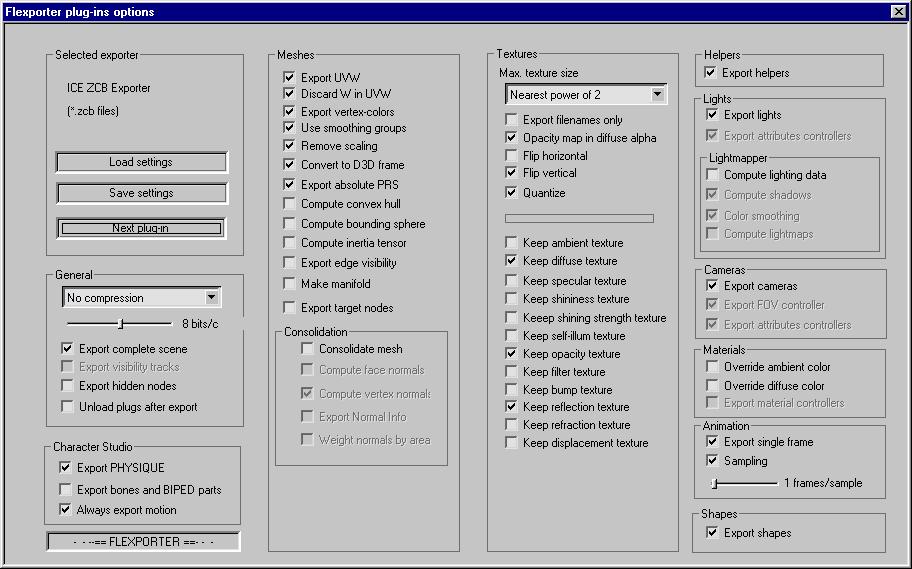

Check the Options I'm using if you want to read some files with Ice or Flexine...

Related stuff :

- Flexporter mailing list

- Consolidation code

I am still working on Flexporter from time to time, but this project is not officially supported anymore. I do not plan another future public release. On the other hand, the source code is now freely available.

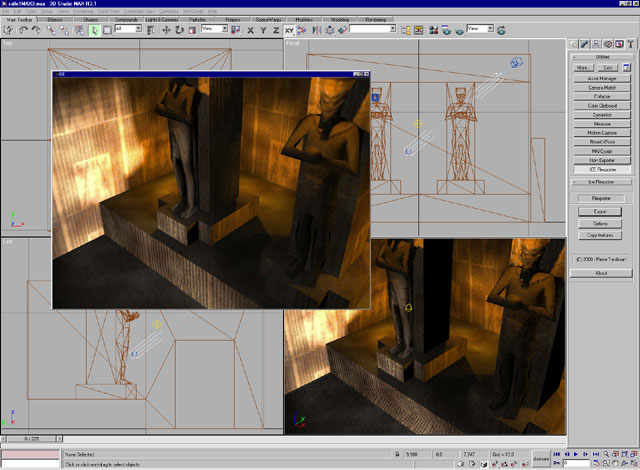

                 Right: the scene in MAX 3.1 Left: the flexported replayed scene in ICE.

© Pierre Terdiman 2000-2003
